產品特點
● 提供USB電氣隔離(Galvanic isolation)
● 支援USB 2.0高速480 Mbps傳輸
● 支援USB 3.0超高速5 Gbps傳輸(7055-D, 7055-C)
● 相容高速與低速傳輸
● 隔離能力最高到5kVRMS
● 先進的靜電保護ESD(20kV IEC Airgapdischarge)
● 直接可以使用，無需驅動程式
● 直通Host與器材(no-hub)，相容所有作業系統
● 支援所有USB的傳輸與模式
● 無額外的往返延遲
● USB本身供電，無需額外電源
● 極靜的電源陣列隔離，線性整流
● 可選擇使用AUX隔離電源輸入(Micro USB)
● LED燈顯示運作狀態與速度
● 阻抗控制高速線路設計
● 符合FCC, CE, RCM, ICES003規範
● 全鋁合金本體
● 德國設計與生產，Made in Germany
Product Features

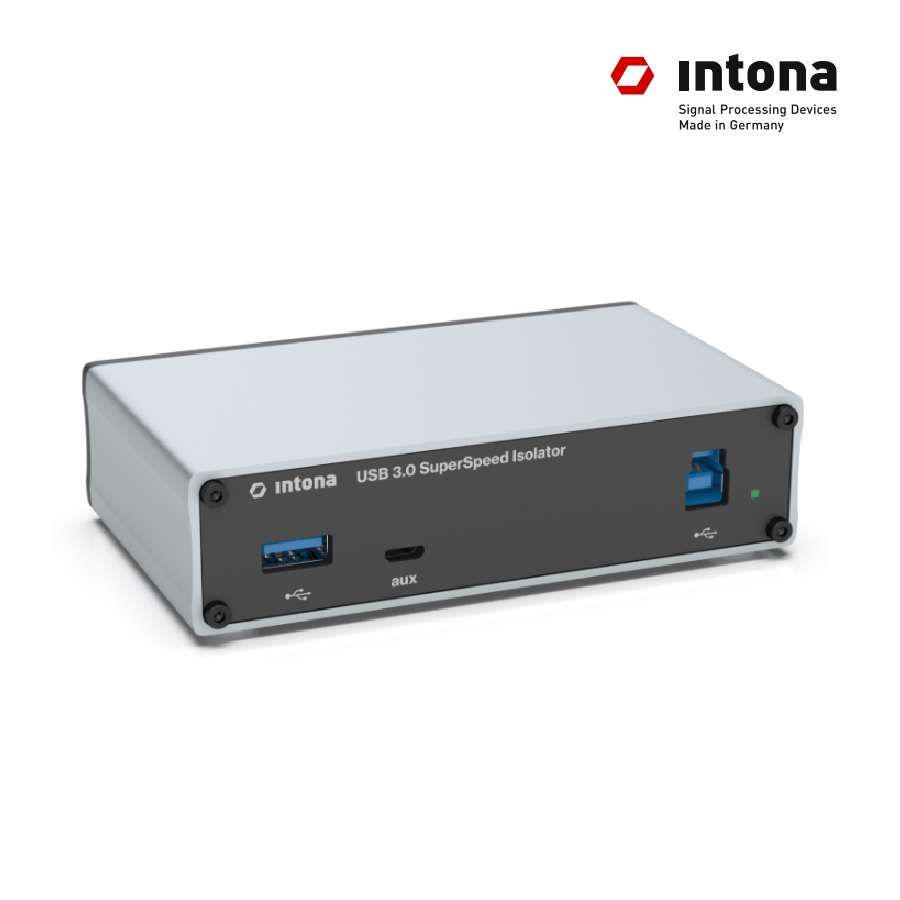

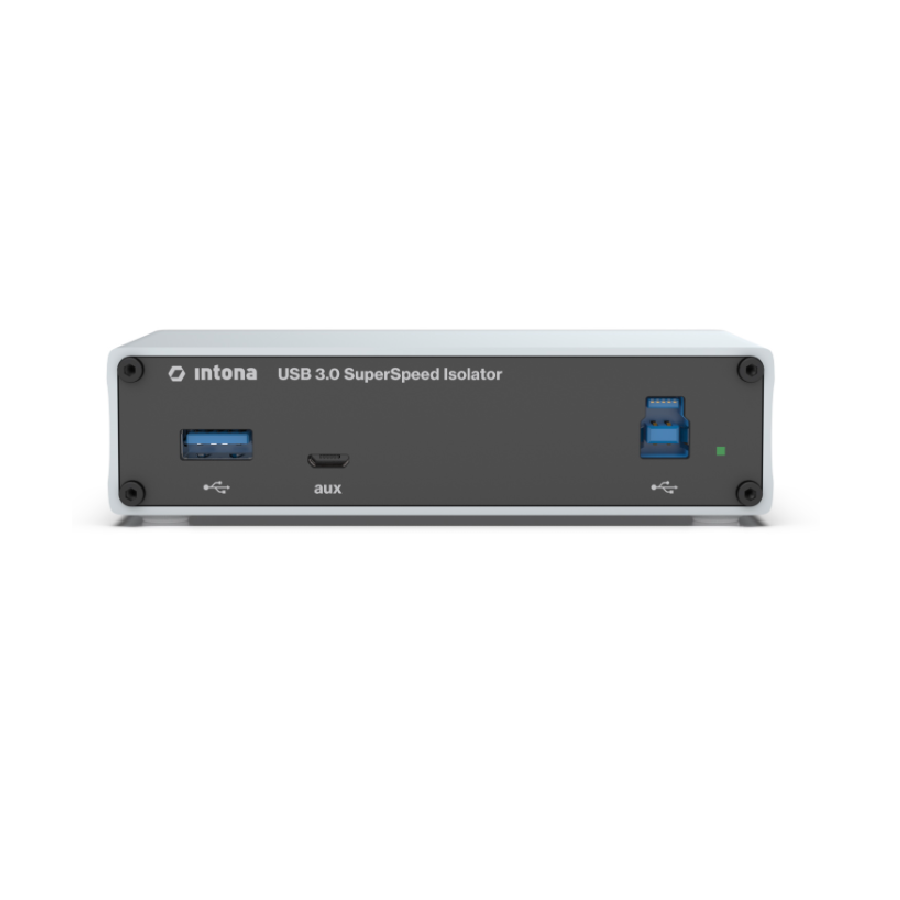

Auxiliary power input
The secondary side may be powered by an external power feed with up to 2000mA for energy-hungry devices via Micro-USB. The power switching between internal and external supply is done automatically.
More features
- Provides galvanic isolation to the USB bus
- Compliant to USB 3.0 (3.1 Gen 1) SuperSpeed (5 GBps) and 2.0 Hi-Speed (480 MBps)
- Backwards compatible to Full Speed and Low Speed
- 1kV DC Isolation of USB 3.0 part
- 5kV RMS Isolation of USB 2.0 part
- Advanced ESD protection
- Works out of the box, no drivers needed
- Transparent to host and device: wide compatibility to all operating systems, embedded systems and devices
- Works also with hubs and extenders
- Supports all USB-specific transfers and modes
- Powered by USB bus, no separate power supply
- Ultra-quiet power rail isolation for less noise in highly sensitive applications (< 1 µV RMS @ 22 kHz BW)
- up to 900mA output current on isolated side
- up to 2000mA output current on isolated using the aux input
- National compliances: FCC, CE, RCM, ICES-003

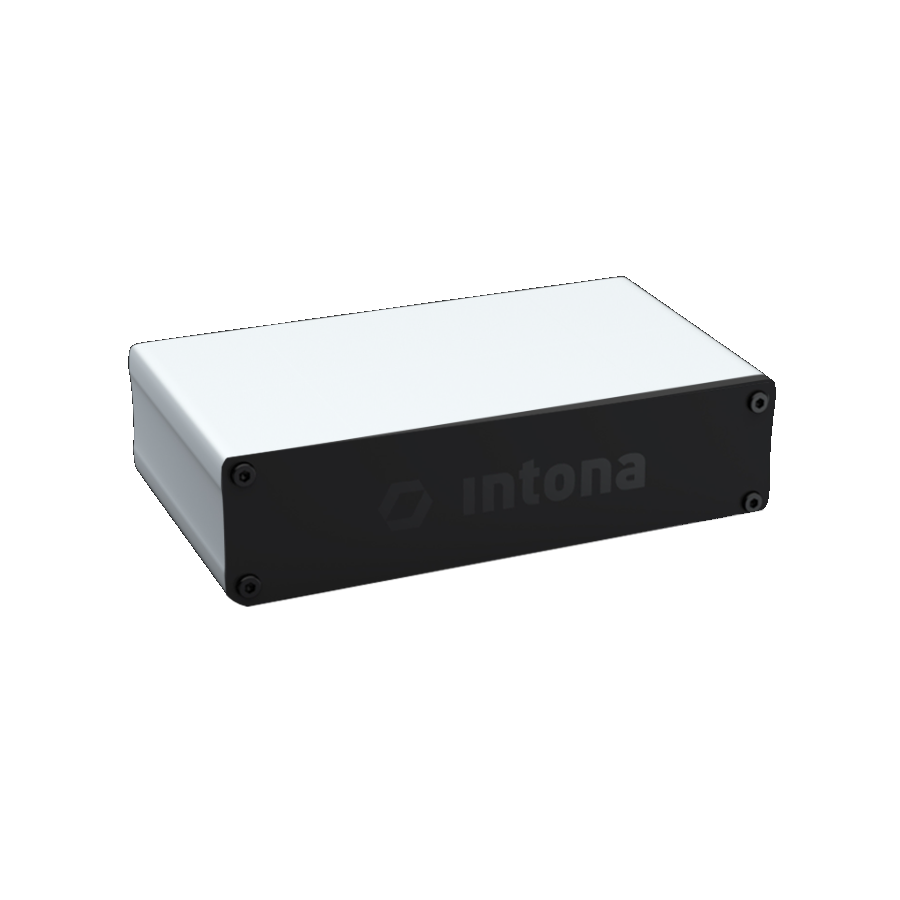

- IP 54 Aluminum housing
- Dimensions: 120 x 30 x 70 mm
