“SCM7….. 你會被它的節奏和活潑動感感到驚訝。”
ATC新設計和建造的25mm軟半球型高音單元採用精密合金波導。
125mm ATC軟半球型中/低音單元。
自家手繞精密徧平線圈。
巨形優化的電機磁剛組件。
平直阻抗曲線允許放大器容易負載。

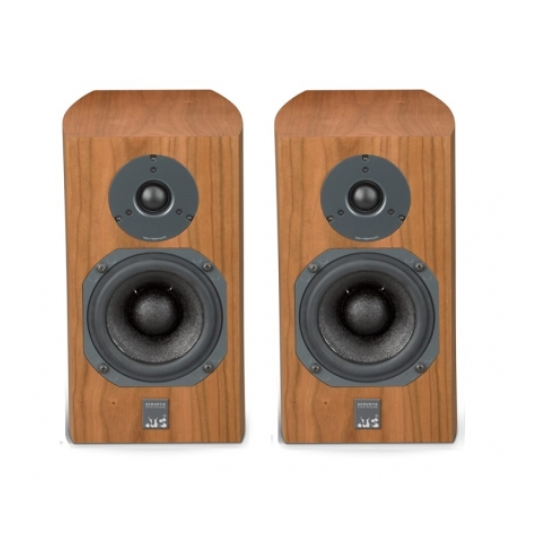

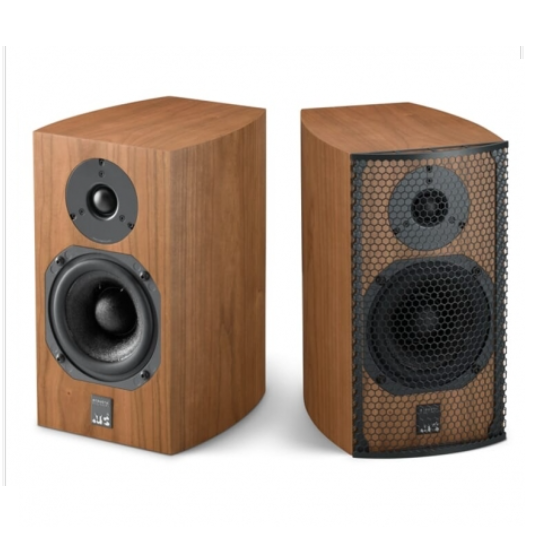

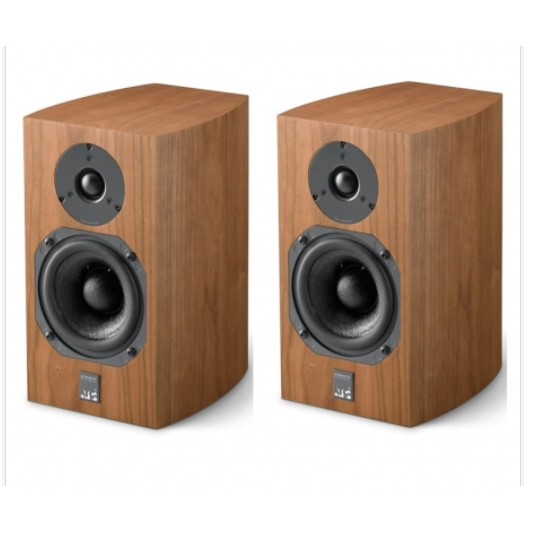

SCM7

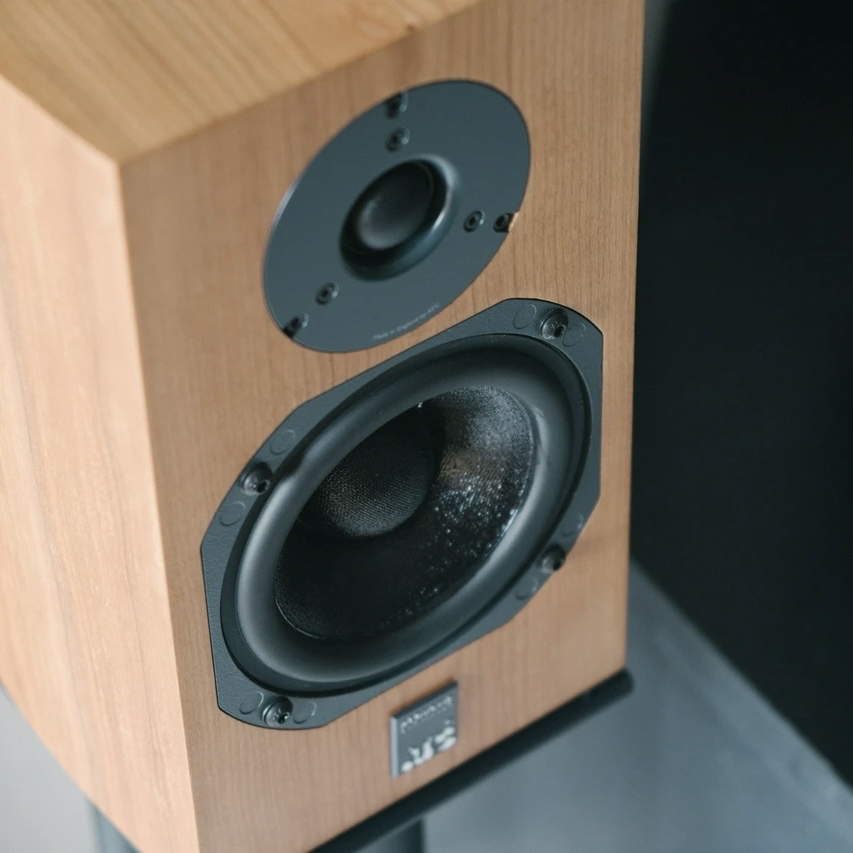

New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
125mm ATC mid/bass unit with integral soft dome.
In-house, hand-wound precision flat wire coil.
Massive optimised motor assembly.
Flat impedance curve allowing easy load for amplifiers.
Drivers: HF ATC 25mm Neodymium Soft Dome, Mid/LF ATC 125mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 60Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 84dB @ 1W @ 1metre
Max SPL: 103dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz

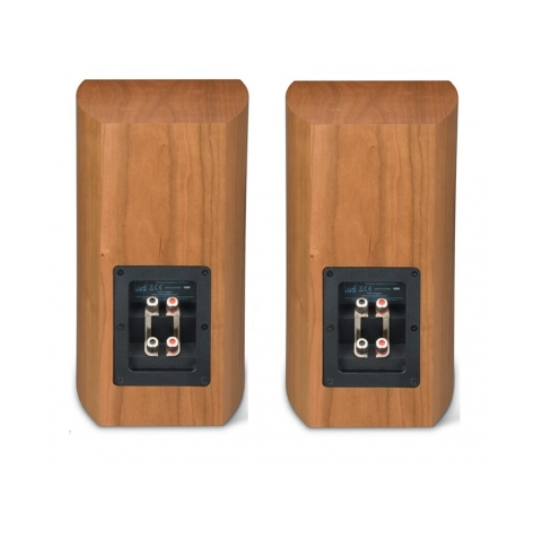

Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 300 x 174 x 215mm / 11.81 x 6.85 x 8.46″ (grill adds 28mm depth)
Weight: 7.5kg
